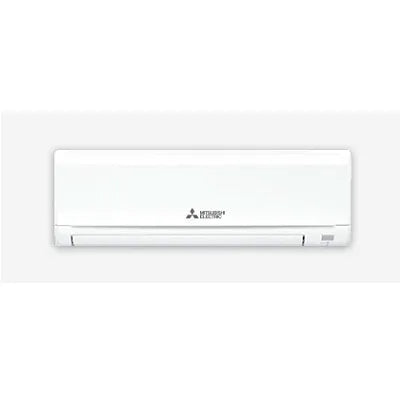

Mitsubishi 1 Ton 4 Star MSY-GN13VF

Capacity (Tr) 1 Tr
Star Rating - As Per BEE 4 Star

Type (Cooling)
Indoor Unit
MSY-GN13VF-D1
Outdoor Unit
MUY-GN13VF-D1

Performance Parameters
Star Rating - As Per BEE 4 Star bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated* Min-Max) 3.7(1.1-4.1)kW
ISEER 4.81
Operating Current (A) 4.8
Air Volume (CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) 145/184/255/327/459

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) 19/24/31/38/44
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 290*799*232
Weight kg 9.5
Outdoor unit Dimensions (H x W x D) mm 550*800*285
Weight kg 32
Breaker Size (MCB required) A 10
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 9.52(3/8)
Max.Length Out-In m 20
Max.Height Out-In m 12
