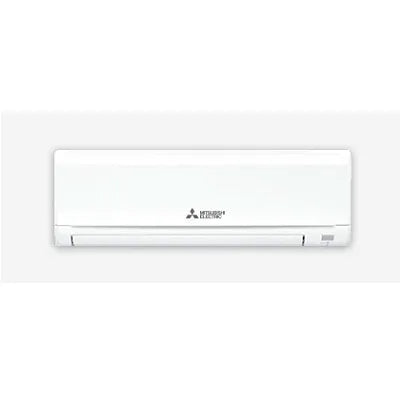

Mitsubishi 1.5 Ton 4 Star MSY-GN18VF

Capacity (Tr) 1.5 Tr
Star Rating - As Per BEE 4 Star

Type (Cooling)
Indoor Unit
MSY-GN18VF-D1
Outdoor Unit
MUY-GN18VF-D1

Performance Parameters
Star Rating - As Per BEE 4 Star bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated* Min-Max) 5.2(1.5-6.0)kW
ISEER 4.58
Operating Current (A) 6.6
Air Volume (CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) 303/379/430/529/650

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) 28/33/38/44/49
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 305*923*250
Weight kg 12.5
Outdoor unit Dimensions (H x W x D) mm 550*800*285
Weight kg 32
Breaker Size (MCB required) A 10
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 12.7(1/2)
Max.Length Out-In m 20
Max.Height Out-In m 12
