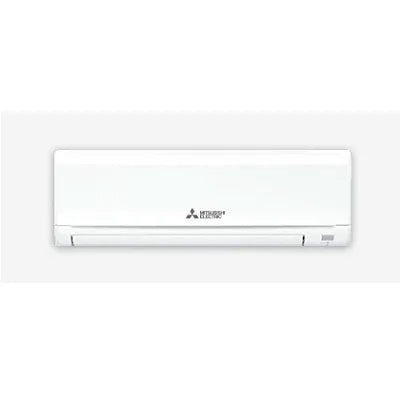

Mitsubishi 2.2 Ton 4 Star MSY-GN26VF

Capacity (Tr) 2.2 Tr
Star Rating - As Per BEE 4 Star

Type (Cooling)
Indoor Unit
MSY-GN26VF-D1
Outdoor Unit
MUY-GN26VF-D1

Performance Parameters
Star Rating - As Per BEE 4 Star bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated* Min-Max) 7.6(2.4-9.2)kW
ISEER 4.79
Operating Current (A) 8.8
Air Volume (CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) 308/378/449/520/734

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) 30/37/41/45/51
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 325*1100*238
Weight kg 15
Outdoor unit Dimensions (H x W x D) mm 880*840*330
Weight kg 48.5
Breaker Size (MCB required) A 20
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 12.7(1/2)
Max.Length Out-In m 30
Max.Height Out-In m 15
