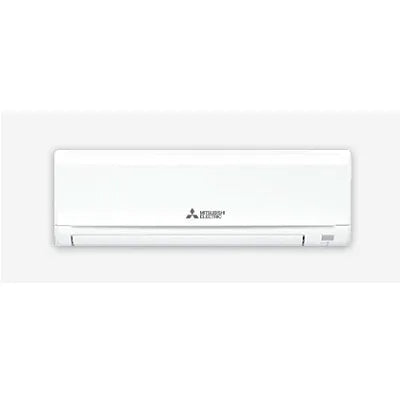

Mitsubishi 1 Ton 5 Star MSY-GR13VFT

Capacity (Tr) 1 Tr
Star Rating - As Per BEE 5 Star

Type (Cooling)
Indoor Unit
MSY-GR13VFT-DA1
Outdoor Unit
MUY-GR13VFT-DA1

Performance Parameters
Star Rating - As Per BEE 5 Star bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated Min-Max) 3.7 (1.4-4.1)kW
Total Input (Rated Min-Max) 1.01(0.32-1.31)kW
ISEER 5.02
Operating Current (A) 4.8
Air Volume(CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) 152/187/254/335/448

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) 19/24/31/38/43
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 280x838x229
Weight kg 10
Outdoor unit Dimensions (H x W x D) mm 538x699x249
Weight kg 24.5
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 9.52(3/8)
Max.Length Out-In m 20
Max.Height Out-In m 12
