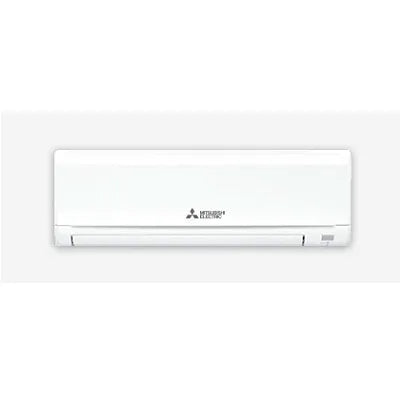

Mitsubishi 1.5 Ton 5 Star MSY-GR18VFT

Capacity (Tr) 1.5 Tr
Star Rating - As Per BEE 5 Star

Type (Cooling)
Indoor Unit
MSY-GR18VFT-DA1
Outdoor Unit
MUY-GR18VFT-DA1

Performance Parameters
Star Rating - As Per BEE 5 Star bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated Min-Max) 5.2(1.8-6.0)kW
Total Input (Rated Min-Max) 1.36(0.33-1.53)kW
ISEER 5.00
Operating Current (A) 6.2
Air Volume(CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) 318/396/466/554/717

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) 27/33/38/44/49
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 325x1100x257
Weight kg 17
Outdoor unit Dimensions (H x W x D) mm 714x800x285
Weight kg 38
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 12.7(1/2)
Max.Length Out-In m 30
Max.Height Out-In m 15
