Mitsubishi 1.9 Ton 5 Star MSY-GR22VFT

Capacity (Tr) 1.9 Tr
Star Rating - As Per BEE 5 Star

Type (Cooling)

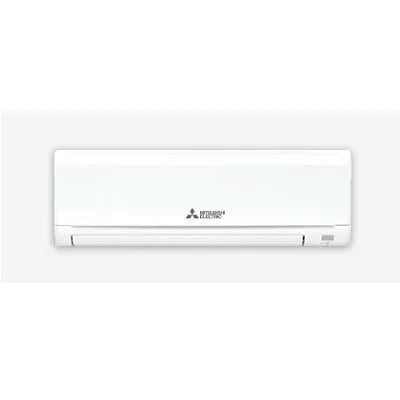

Indoor Unit
MSY-GR22VFT-DA1
Outdoor Unit
MUY-GR22VFT-DA1

Performance Parameters
Star Rating - As Per BEE 5 Star Bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated Min-Max) 6.6(1.8-7.2)kW
Total Input (Rated Min-Max) 1.72(0.33-2.15)kW
ISEER 5.00
Operating Current (A) 7.6
Air Volume (CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) 339/424/512/597/784

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) 28/36/41/45/51
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 325x1100x257
Weight kg 17
Outdoor unit Dimensions (H x W x D) mm 714x800x285
Weight kg 38
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 15.88(5/8)
Max.Length Out-In m 30
Max.Height Out-In m 15
