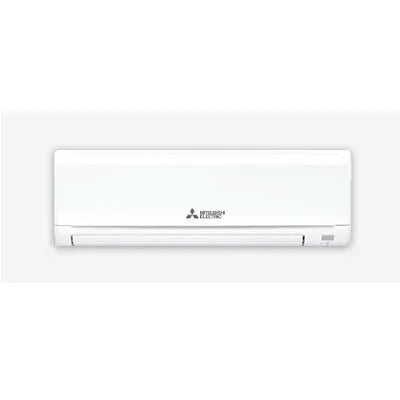

Mitsubishi 2.2 Ton 4 Star MSY-GR26VF

Capacity (Tr) 2.2 Tr
Star Rating - As Per BEE 4 Star

Type (Cooling)
Indoor Unit
MSY-GR26VF-DA1
Outdoor Unit
MUY-GR26VF-DA1

Performance Parameters
Capacity (Tr) 2.2 Tr
Star Rating - As Per BEE 4 Star bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated Min-Max) 7.6(2.1-9.2)kW
Total Input (Rated Min-Max) 2.09(0.45-3.33)kW
ISEER 4.80
Operating Current (A) 9.2
Air Volume (CFM) Indoor Unit(Silent/Low/Mid/High/SHi) 346/452/540/625/809

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit dB(A)(Silent/Low/Mid/High/SHi) 30/37/42/46/53
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 325x1100x257
Weight kg 17
Outdoor unit Dimensions (H x W x D) mm 880*840*330
Weight kg 48
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 15.88(5/8)
Max.Length Out-In m 30
Max.Height Out-In m 15
