Mitsubishi 0.8 Ton 2 Star MSY-JP10VF

Capacity (Tr) 0.8 Tr
Star Rating - As Per BEE 2 Star

Type (Cooling)

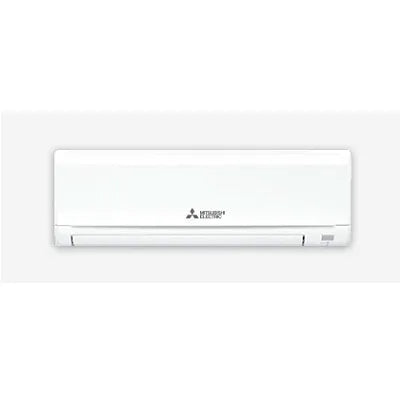

Indoor Unit
MSY-JP10VF
Outdoor Unit
MUY-JP10VF

Performance Parameters
Star Rating - As Per BEE 2 Star Bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated Min-Max) 2.6(0.6-2.7)kW
Total Input (Rated Min-Max) 0.95(0.22-1.00)kW
ISEER 3.76
Operating Current (A) 4.6
Air Volume (CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) 140/215/280/345/434

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) 21/25/31/37/43
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 280x838x228
Weight kg 8
Outdoor unit Dimensions (H x W x D) mm 454x660x235
Weight kg 18
Breaker Size (MCB required) A 10
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 9.52(3/8)
Max.Length Out-In m 20
Max.Height Out-In m 12
