Mitsubishi 2.5 Ton 3 Star MSY-JR30VF

Capacity (Tr) 2.5 Tr
Star Rating - As Per BEE 3 Star

Type (Cooling)

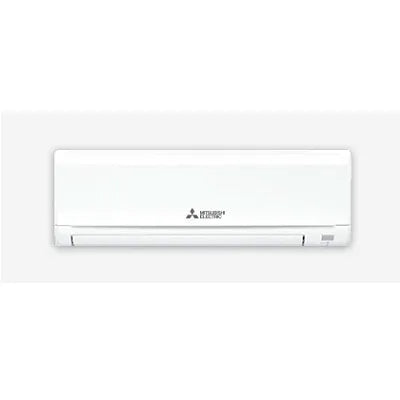

Indoor Unit
MSY-JR30VF
Outdoor Unit
MUY-JR30VF

Performance Parameters
Star Rating - As Per BEE 3 Star bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated Min-Max) 8.2 (2.4-9.2)kW
Total Input (Rated Min-Max) 2.53 (0.48-3.34)kW
ISEER 4.36
Operating Current (A) 11.6
Air Volume(CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) 307-413-519-735

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) 30-38-45-51
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 325x1100x238
Weight kg 15.0
Outdoor unit Dimensions (H x W x D) mm 880x840x330
Weight kg 48.5
Breaker Size MCB A 20
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 12.7(1/2)
Max.Length Out-In m 30
Max.Height Out-In m 15
