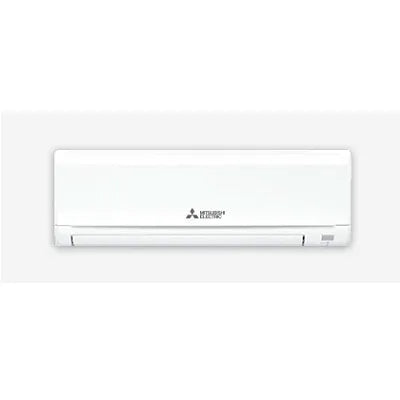

Mitsubishi 1.0 Ton 3 Star MSY-JS13VF

Capacity (Tr) 1.0 Tr
Star Rating - As Per BEE 3 Star

Type (Cooling)
Indoor Unit
MSY-JS13VF
Outdoor Unit
MUY-JS13VF

Performance Parameters
Capacity (Tr) 1.0 Tr
Star Rating - As Per BEE 3 Star bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated Min-Max) 3.6 (0.9-3.7)kW
Total Input (Rated Min-Max) 1.27 (0.30-1.35)kW
ISEER 4.15
Operating Current Rated(A) 6
Air Volume (CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) 190/247/331/397/452

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) 22/28/36/40/43
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 280x838x228
Weight kg 8.5
Outdoor unit Dimensions (H x W x D) mm 538x699x249
Weight kg 21
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 9.52(3/8)
Max.Length Out-In m 20
Max.Height Out-In m 12
