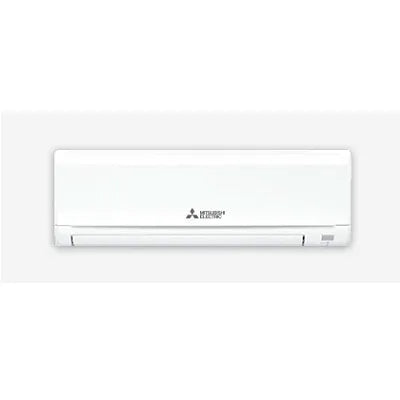

Mitsubishi 1.9 Ton 3 Star MSY-JS22VF

Capacity (Tr) 1.9 Tr
Star Rating - As Per BEE 3 Star

Type (Cooling)
Indoor Unit
MSY-JS22VF
Outdoor Unit
MUY-JS22VF

Performance Parameters
Star Rating - As Per BEE 3 Star Bee rating
Power Supply 230 V / 50 Hz / Single Phase
Capacity (Rated Min-Max) 6.6 (1.6-6.7)kW
Total Input (Rated Min-Max) 2.01 (0.34-2.20)kW
ISEER 4.22
Operating Current Rated(A) 9.1
Air Volume (CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) 300/399/487/576/660

Compressor, Refrigerant & Ambient Operations
SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) 27/37/41/45/51
Refrigerant R32 R32

Dimensions & Weight
Indoor unit Dimensions (H x W x D) mm 305x923x262
Weight kg 12.5
Outdoor unit Dimensions (H x W x D) mm 714x800x285
Weight kg 37.0
Ext.Piping Diameter Liquid mm (inches) 6.35(1/4)
Diameter Gas mm (inches) 12.7(1/2)
Max.Length Out-In m 30
Max.Height Out-In m 15
